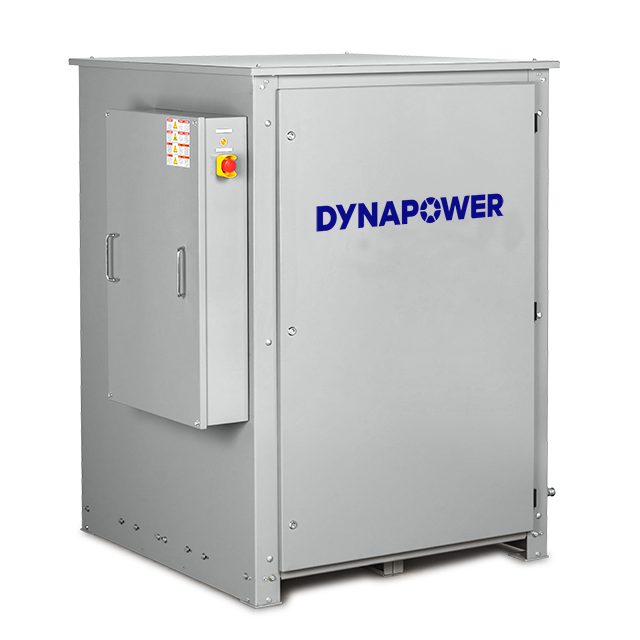

RapidX SCR Rectifier
Performance, reliability, and lowest lifetime cost.
Our affordable RapidX SCR rectifier delivers the same reliability and longevity you expect from Dynapower, with unparalleled flexibility and speed of delivery.
We are pleased to offer an economy line of pre-engineered air and water-cooled SCR rectifiers that puts efficient, reliable power in your facility at a substantially lower cost than a custom-engineered SCR rectifier, with a faster delivery time. In fact, RapidX shipping times are up to 50% faster than custom SCR rectifiers.
RapidX SCR rectifiers utilize the same quality materials, construction, and extensive testing as do our custom-designed rectifiers—all built in our Vermont, USA facility. With decades of longevity and greater controls flexibility, it is a value-rich rectifier like no other on the market.
Lowest lifetime cost in the industry
Wide range of standard features and functionality
Easy and inexpensive upgrade controls
Multi-unit digital controller compatible
- 460-480VAC, 3Ph, 60Hz (Standard)
- 208VAC, 3Ph, 60Hz
- 220-240VAC, 3Ph, 60Hz
- 380-415VAC, 3Ph, 50Hz
- 440VAC, 3Ph, 60Hz
- 575-600VAC, 3Ph, 60Hz
- Water-Cooled: Up to 10,000ADC and 100VDC
- Air-Cooled: Up to 6000ADC and 100VDC
- See Standard Configuration Options matrix below
- Forced Air
- Direct Water
- ≤5% at Full Output
- Ripple Filter Available
- Air-Cooled: NEMA 1
- Water-Cooled: NEMA 2
- Power Supply Interface Terminal (PSIT)
- Ethernet IP
- Modbus TCP
- Analog (4-20mA and 0-10V)
- Short Circuit
- Voltage Stabilization (± 0.5%)
- Electronic Peak Current Detector
- Step-Start Circuit on AC Line
- SCR Watchdog
- Metal Finishing
- Hydrogen Production
Standard Configuration Options
Direct Water-Cooled 6-Pulse (no ripple filter)
Forced Air-Cooled 6-Pulse (no ripple filter)
Not seeing the configuration you need?
Additional configuration options are available with our Custom SCR product line.
A programmable touchscreen controller designed to give users maximum control over their units. Easy-to-navigate graphic display and user-friendly recipe storage makes automating your processes is fast and easy.
An intuitive touchscreen interface that allows you to store recipes, easily diagnose faults, and record objective evidence for between 1 and 10 rectifiers of varying outputs.
The Dynapower process controller is a PC-based graphical interface application designed for metal finishing process control with Dynapower rectifier systems. One laptop or desktop-based application can provide control, monitoring, data logging and automation for up to ten rectifiers.
Perfect for processes that do not require specialized outputs, our analog controls are designed to be as reliable and straightforward as possible, ensuring you get the unit control you need while withstanding the harshest environments.
Select an image below to view larger
Downloads & Links
Want to learn more about the RapidX SCR Rectifier? Check out our product information below for technical specifications and other essential product information.
