Rapid-X Air-Cooled Modular Power Supply
Cost-effective, quality power that’s easy to expand and repair
Our Rapid-X Air-Cooled Modular Power Supply combines reliability and longevity with greater flexibility, faster delivery, and lower cost. It features a stackable modular design, front-to-back cooling, and a dedicated air-cooling channel.
Compact and scalable, the air-cooled Rapid-X Modular Power Supply combines the benefits of modular switch mode design with the repairability of ‘monument’ style switchmodes, allowing you to focus on applying the product to your process, not changing your process to fit our product. Available in seven cabinet sizes, it’s designed to be the most versatile switch mode power supply you’ve ever owned.
For maintenance, individual modules can be pulled from the unit and serviced separately, giving you maximum flexibility over the systems that power your process.
Base configuration comes standard with a port for Ethernet/IP for your own overall system controls.
System Advantages
Modular design for easy maintenance and repairs
Wide range of standard features and functionality
Easy & inexpensive upgrade controls
Multi-unit digital controller compatible
System Overview
AC Input
- 400VAC, 3 Phase, 60 Hz
- 440VAC, 3 Phase, 60 Hz
- 480VAC, 3 Phase, 60 Hz
DC Output
- 1000-18,000ADC (per cabinet)
- 6-200VDC
Cooling
- Air Cooled, Front to Back
Ripple
- ≤2% at Full Output
Enclosure Rating
- IP 32
Utility Program
- Power Supply Interface Terminal (PSIT)
Communications Interface
- Ethernet IP
Protection Features
- Short Circuit (input and output)
- Over-Current
- Over-Voltage
- Under-Current
- Under-Voltage
- Over-Temperature
- In-rush Current
- Electronic Peak Current Detector
- Environmental Alarm (for condensation/humidity or chemical buildup)
- Ambient Temperature Alarm
- Module Failure Alarm
Standard Configuration Options
Coming soon
Control Options
Single-Unit Touchscreen Controller
A programmable touchscreen controller designed to give users maximum control over their units. Easy-to-navigate graphic display and user-friendly recipe storage makes automating your processes is fast and easy.
Multi-Unit Touchscreen Controller
An intuitive touchscreen interface that allows you to store recipes, easily diagnose faults, and record objective evidence for between 1 and 10 rectifiers of varying outputs.
PC-Based Process Controller
The Dynapower process controller is a PC-based graphical interface application designed for metal finishing process control with Dynapower rectifier systems. One laptop or desktop-based application can provide control, monitoring, data logging and automation for up to ten rectifiers.

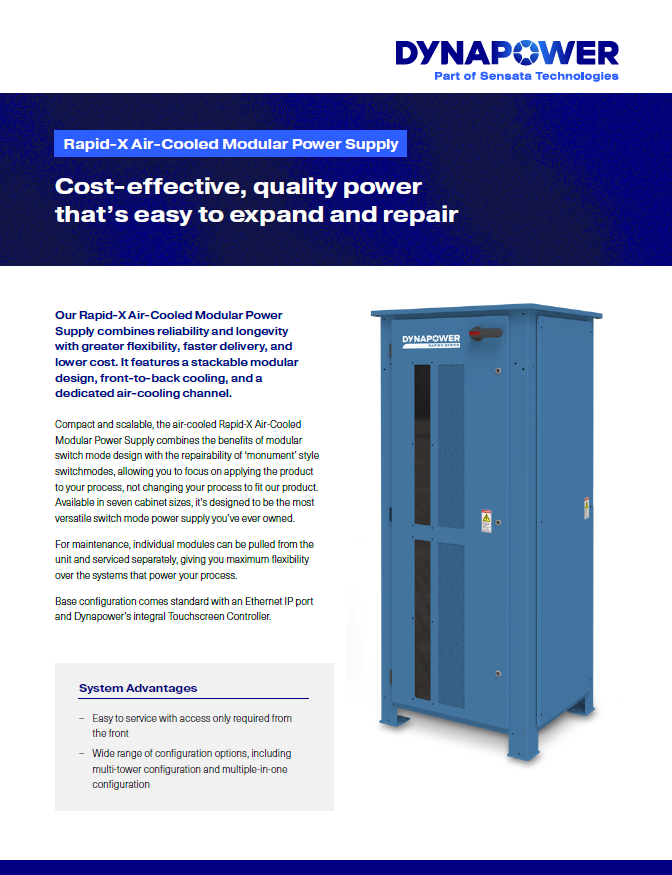

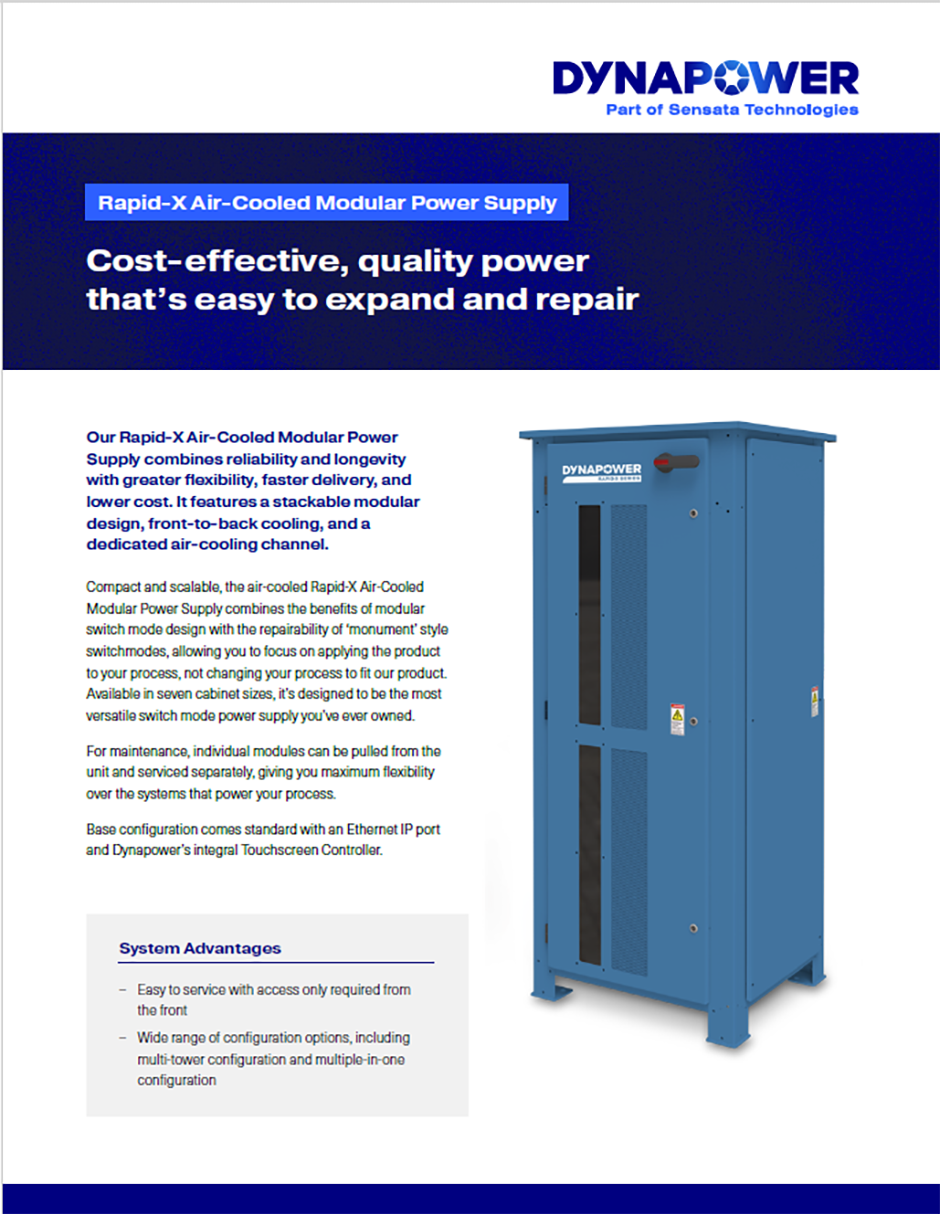

Downloads & Links
Want to learn more about the Rapid-X SMPS? Check out our product information below for technical specifications and other essential product information.
