Rapid-X Water-Cooled Modular Power Supply
Cost-effective, quality power that’s easy to expand and repair.
Find out more.
Our Rapid-X Water-Cooled Modular Power Supply combines reliability and longevity with greater flexibility, faster delivery, and lower cost. It features a stackable modular design, supplied with an integrated water-cooling system.
Compact and scalable, the water-cooled Rapid-X Modular Power Supply combines the benefits of modular switch mode design with the repairability of ‘monument’ style switch modes, allowing you to focus on applying the product to your process, not changing your process to fit the product. Available in two cabinet sizes, it’s designed to be the most versatile switch mode power supply you’ve ever owned.
For maintenance, individual modules can be pulled from the unit and serviced separately, giving you maximum flexibility over the systems that power your processes.
System Advantages
Modular design for easy maintenance and repairs
Wide range of standard features and functionality
Multi-unit digital controller compatible

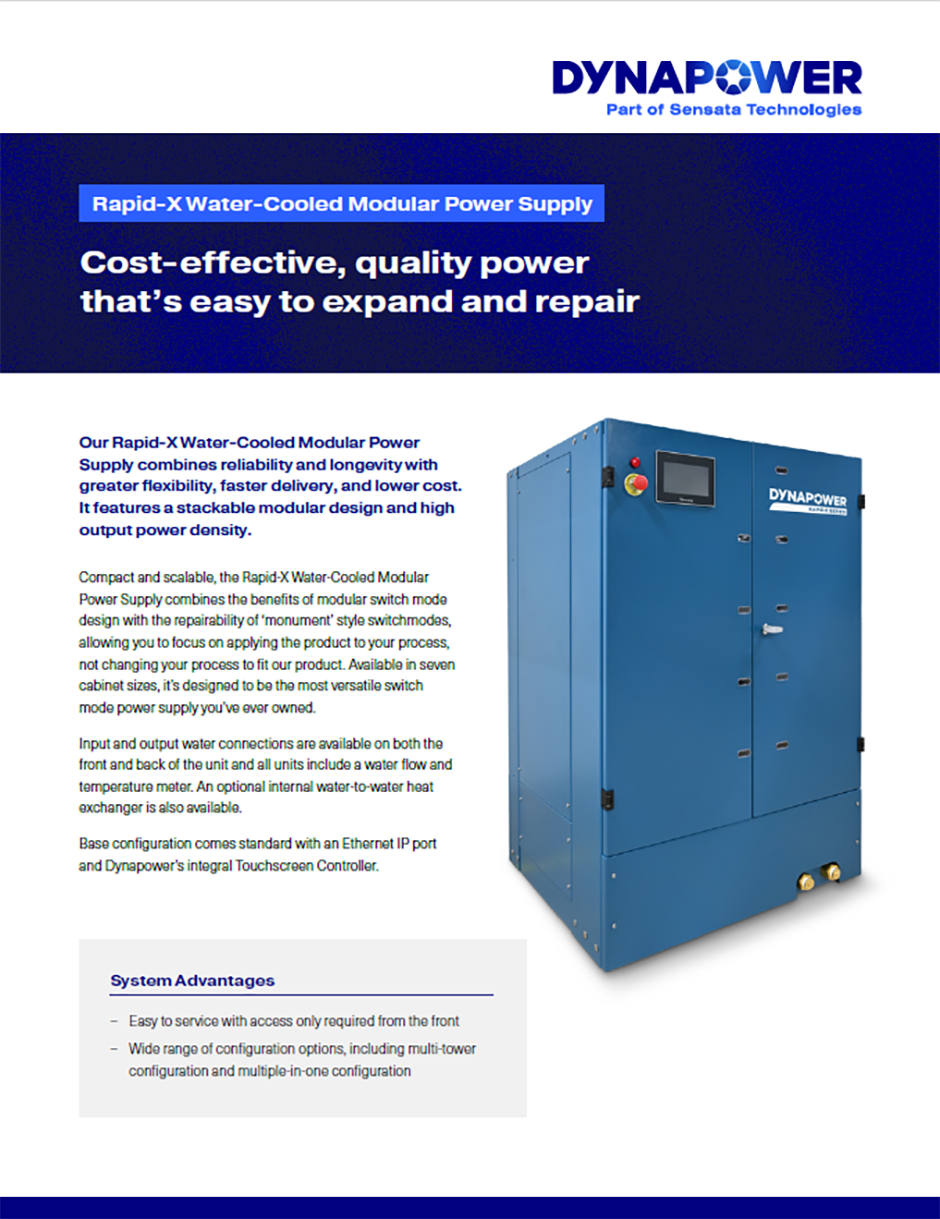

Downloads & Links
Want to learn more about the Rapid-X Water-Cooled Modular Power Supply? Check out our product information below for technical specifications and other essential product information.
System Overview
AC Input
- 400-480 VAC, 3 Phase, 60 Hz
DC Output
- 1000-22,500 ADC
- 6-120 VDC
Cooling
- Water Cooled
- Optional Internal Water-to-Water Heat Exchanger
Ripple
- ≤2% at Full Output
Enclosure Rating
- IP54
Communications Interface
- Ethernet IP
Protection Features
- Short Circuit (input and output)
- Over-Current
- Over-Voltage
- Under-Current
- Under-Voltage
- Over-Temperature
- Flow Rate Warning
- In-rush Current
- Electronic Peak Current Detector
- Environmental Alarm (for condensation/humidity or chemical buildup)
- Ambient Temperature Alarm
- Module Failure Alarm
Standard Configuration Options
DC Output Amps
