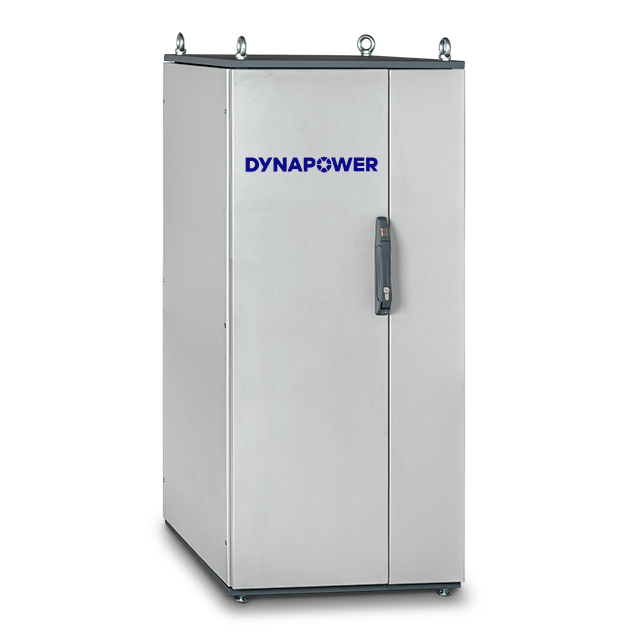

RapidX Switchmode Power Supply
Cost-effective, quality power that’s easy to expand and repair
Our RapidX Switchmode Power Supply (SMPS) combines reliability and longevity with greater flexibility, faster delivery, and lower cost. It features a stackable modular design and pull-out racks, front-to-back cooling, and a dedicated air-cooling channel.
Compact and scalable, the air-cooled RapidX SMPS combines the benefits of modular switchmode design with the repairability of ‘monument’ style switchmodes, allowing you to focus on applying the product to your process, not changing your process to fit our product. Available in three cabinet heights, it’s designed to be the most versatile switchmode power supply you’ve ever owned.
For maintenance, individual modules can be pulled from the unit and serviced separately, giving you maximum flexibility over the systems that power your process.
Base configuration comes standard with ports for Modbus/TCP and Ethernet/IP as well as 4-20mA or 0-10V analog channels for your own overall system controls.
Modular design for easy maintenance and repairs
Wide range of standard features and functionality
Easy & inexpensive upgrade controls
Multi-unit digital controller compatible
- 208/240VAC, 3PH, 60/50Hz
- 380/400VAC, 3PH, 60/50Hz
- 460/480VAC, 3PH, 60/50Hz
- 550/575VAC, 3PH, 60/50Hz
- See Standard Configuration Options matrix below
- Air Cooled, Front to Back
- ≤2% at Full Output
- NEMA 1
- Power Supply Interface Terminal (PSIT)
- Ethernet IP
- Modbus TCP
- Analog (4-20mA and 0-10V)
- Short Circuit
- Electronic Peak Current Detector
- Environmental Alarm (for condensation/humidity or chemical buildup)
- Ambient Temperature Alarm
- Module Failure Alarm
Standard Configuration Options
Air-Cooled, Front to Back
Select an image below to view larger
A programmable touchscreen controller designed to give users maximum control over their units. Easy-to-navigate graphic display and user-friendly recipe storage makes automating your processes is fast and easy.
An intuitive touchscreen interface that allows you to store recipes, easily diagnose faults, and record objective evidence for between 1 and 10 rectifiers of varying outputs.
The Dynapower process controller is a PC-based graphical interface application designed for metal finishing process control with Dynapower rectifier systems. One laptop or desktop-based application can provide control, monitoring, data logging and automation for up to ten rectifiers.
A programmable controller designed to be flexible, reliable, and user-friendly. Precision digital controls and intuitive recipe storage make it quick and easy to automate, and ensure you get the exact unit output needed.
Perfect for processes that do not require specialized outputs, our analog controls are designed to be as reliable and straightforward as possible, ensuring you get the unit control you need while withstanding the harshest environments.
Downloads & Links
Want to learn more about the RapidX SMPS? Check out our product information below for technical specifications and other essential product information.
